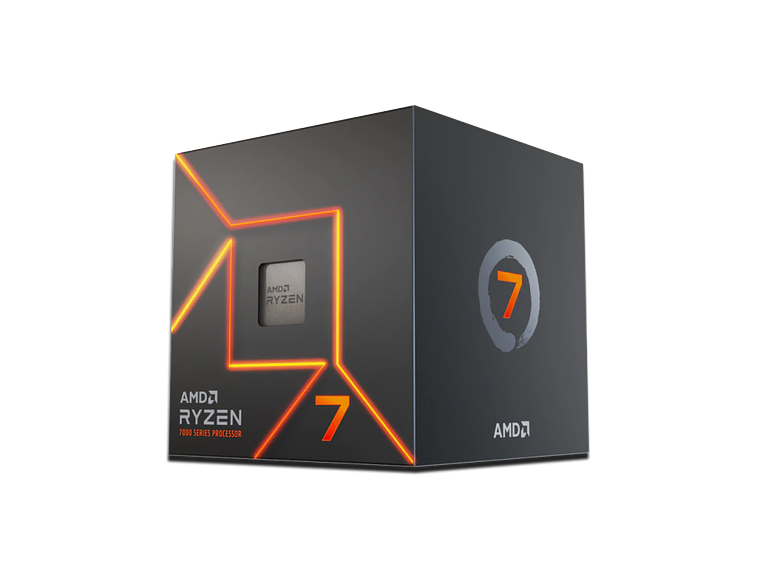

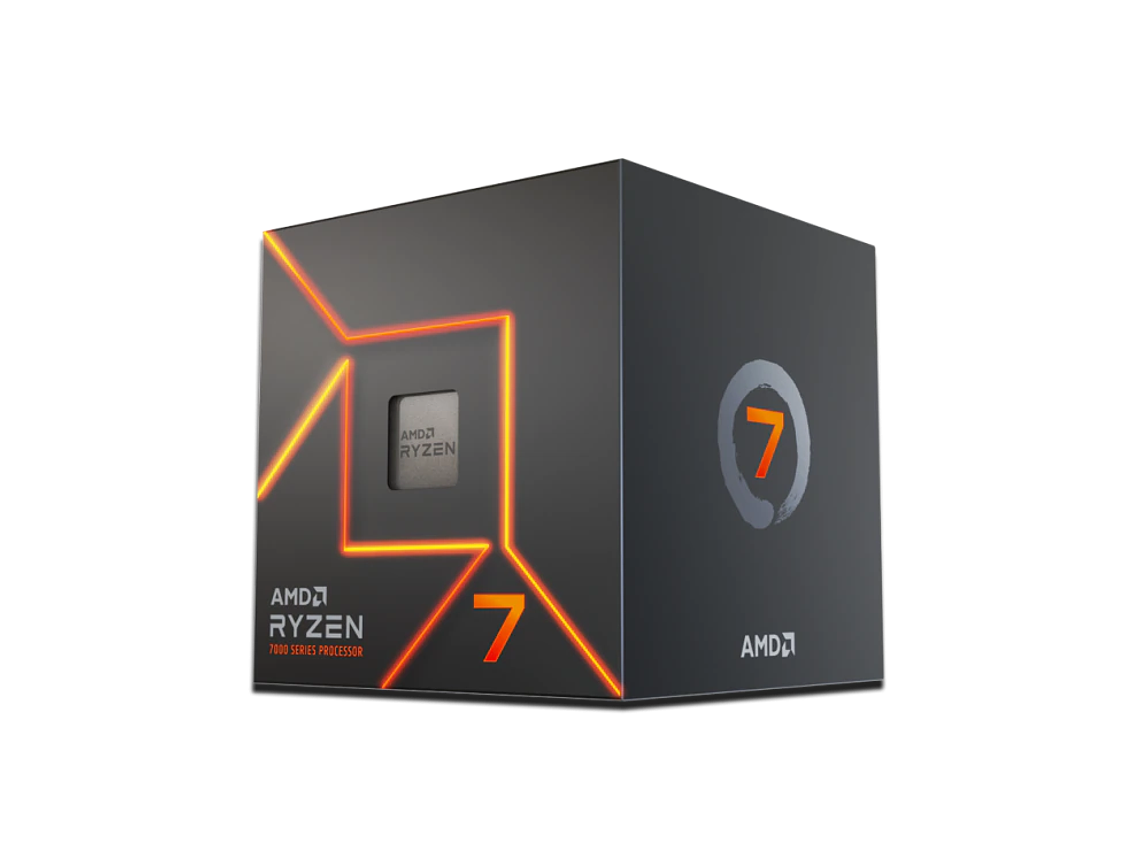

PROCESADOR AMD RYZEN 7 7700 8 NUCLEOS AM5 C DISIPADOR

General Specifications Platform Desktop Market Segment Enthusiast Desktop Product Family AMD Ryzen™ Processors Product Line AMD Ryzen™ 7 Processors AMD PRO Technologies No Consumer Use Yes Regional Availability Global Former Codename Raphael AM5 Architecture Zen 4 # of CPU Cores 8 Multithreading (SMT) Yes # of Threads 16 Max. Boost Clock Up to 5.3GHz Base Clock 3.8GHz L1 Cache 512KB L2 Cache 8MB L3 Cache 32MB Default TDP 65W Processor Technology for CPU Cores TSMC 5nm FinFET Processor Technology for I/O Die TSMC 6nm FinFET CPU Compute Die (CCD) Size 71mm² I/O Die (IOD) Size 122mm² Package Die Count 2 Unlocked for Overclocking Yes AMD EXPO™ Memory Overclocking Technology Yes Precision Boost Overdrive Yes Curve Optimizer Voltage Offsets Yes AMD Ryzen™ Master Support Yes CPU Socket AM5 Supporting Chipsets X670E X670 B650E B650 CPU Boost Technology Precision Boost 2 Instruction Set x86-64 Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 Thermal Solution (PIB) AMD Wraith Prism Max. Operating Temperature (Tjmax) 95°C Launch Date 1/14/2023 *OS Support Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. Connectivity USB Type-C® Support Yes Native USB 3.2 Gen 2 (10Gbps) Ports 4 Native USB 3.2 Gen 1 (5Gbps) Ports 0 Native USB 2.0 (480Mbps) Ports 1 Native SATA Ports 0 PCI Express® Version PCIe® 5.0 Native PCIe® Lanes (Total/Usable) 28/24 Additional Usable PCIe Lanes from Motherboard AMD X670E 12x Gen4 AMD X670 12x Gen4 AMD B650E 8x Gen4 AMD B650 8x Gen4 NVMe Support Boot, RAID0, RAID1, RAID10 System Memory Type DDR5 Memory Channels 2 Max. Memory 128GB System Memory Subtype UDIMM Max Memory Speed 2x1R DDR5-5200 2x2R DDR5-5200 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support Yes (Requires mobo support) Graphics Capabilities Integrated Graphics Yes Graphics Model AMD Radeon™ Graphics Graphics Core Count 2 Graphics Frequency 2200 MHz GPU Base 600 MHz USB Type-C® DisplayPort™ Alternate Mode Yes Product IDs Product ID Boxed 100-100000592BOX Product ID Tray 100-000000592 Key Features Supported Technologies AMD EXPO™ Technology AMD Ryzen™ Technologies

EAN	7301433144
Marca	AMD
Tipo de Producto	CPU / Procesador
Modelo	Procesador AMD Ryzen 7 7700 8 Nucleos AM5 c Disipador
Sockets/Zócalo CPU	Socket AM4
Número de Núcleos / Hilos	Núcleos 6 / Hilos 12
Chipset	Socket_am4
Arquitectura	AMD Zen
Alto (cm)	15
Ancho (cm)	20
Profundidad (cm)	20
Pais de Fabricación	China
